18 Indices and Confidence Intervals for Statistical Process Control in `Python`

Figure 2.1: Bootstrapping Sampling Distributions for Statistics!!

This workshop extends our toolkit developed earlier, discussing Process Capability and Stability Indices, and introducing means to calculate confidence intervals for these indices using Python. We’ll calculate Cp, Cpk, Pp, and Ppk, then construct normal-approximation confidence intervals and a simple bootstrap, paralleling the R chapter.

Getting Started

Packages

We’ll be using pandas for data manipulation, plotnine for visualization, scipy for statistical functions, and custom functions from the functions_distributions module.

# Remember to install these packages using a terminal, if you haven't already!
!pip install pandas plotnine scipy

# Load our packages
import pandas as pd
from plotnine import *
import numpy as np
from scipy import stats

Custom Functions

This workshop uses custom functions from the functions_distributions.py module. To use these functions, you need to acquire them from the repository at github.com/timothyfraser/sigma/tree/main/functions.

Add the functions directory to your Python path

import sys
import os
# Add the functions directory to Python path
sys.path.append('functions')  # or path to wherever you placed the functions folder

Once you have the functions available, you can import them:

from functions_distributions import *

Our Data

We’ll be continuing to analyze our quality control data from a local hot springs inn (onsen) in sunny Kagoshima Prefecture, Japan. Every month, for 15 months, you systematically took 20 random samples of hot spring water and recorded its temperature, pH, and sulfur levels. How might you determine if this onsen is at risk of slipping out of one sector of the market (eg. Extra Hot!) and into another (just normal Hot Springs?).

Let’s read in our data from workshops/onsen.csv!

# Let's import our samples of bathwater over time!
water = pd.read_csv('workshops/onsen.csv')
# Take a peek!
print(water.head(3))

##    id  time  temp   ph  sulfur
## 0   1     1  43.2  5.1     0.0
## 1   2     1  45.3  4.8     0.4
## 2   3     1  45.5  6.2     0.9

print(f"Dataset shape: {water.shape}")

## Dataset shape: (160, 5)

print(f"Columns: {list(water.columns)}")

## Columns: ['id', 'time', 'temp', 'ph', 'sulfur']

Our dataset contains:

id: unique identifier for each sample of onsen water.
time: categorical variable describing date of sample (month 1, month 3, … month 15).
temp: temperature of the hot spring water in Celsius.
ph: pH level of the hot spring water.
sulfur: sulfur content in mg per kg of water.

18.0.1 Process Overview

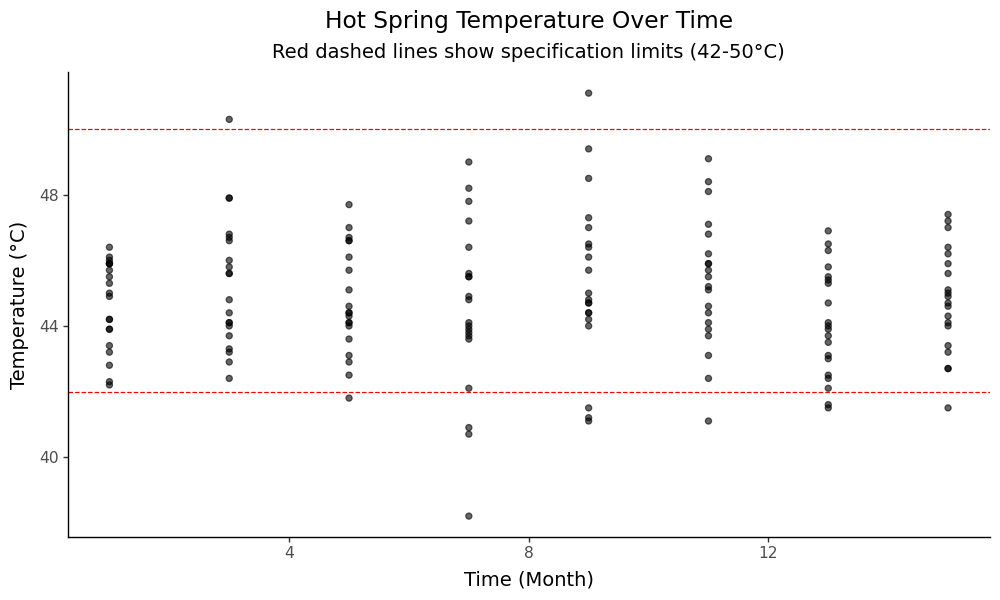

Let’s get a visual overview of our temperature data across time to understand the process:

# Create a process overview plot
g = (ggplot(water, aes(x='time', y='temp')) +
     geom_point(alpha=0.6, size=2) +
     geom_hline(yintercept=[42, 50], color=['red', 'red'], linetype='dashed') +
     theme_classic(base_size=14) +
     labs(x='Time (Month)', y='Temperature (°C)',
          title='Hot Spring Temperature Over Time',
          subtitle='Red dashed lines show specification limits (42-50°C)') +
     theme(plot_title=element_text(hjust=0.5),
           plot_subtitle=element_text(hjust=0.5)))

# Save the plot
g.save('images/06_process_overview.png', width=10, height=6, dpi=100)

This plot shows our temperature measurements over time, with the specification limits for “Extra Hot Springs” (42-50°C) marked as red dashed lines. We can see the process variation and how it relates to our target specifications.

18.1 Process Capability vs. Stability

18.1.1 Definitions

Production processes can be categorized in terms of Capability (does it meet required specifications?) and Stability (is production consistent and predictable?) Both are vital.

A capable process delivers goods that can actually perform their function, like a 20-foot ladder that is actually 20 feet!
A stable process delivers products with consistent and predictable traits (regardless of whether those traits are good).

We need to maximize both process capability and stability to make an effective process, be it in manufacturing, health care, local businesses, or social life! Depending on the shape and stability of our data, we should choose one of the 4 statistics to evaluate our data.

18.1.2 Table of Indices

These statistics rely on some combination of (1) the mean \(\mu\), (2) the standard deviation \(\sigma\), and (3) the upper and lower “specification limits”; the specification limits are our expected values \(E_{upper}\) and \(E_{lower}\), as compared to our actual observed values, summarized by \(\mu\) and \(\sigma\).

Index	Shape	Sided	Stability	Formula	Meaning
\(C_{p}\)	Centered	2-sided	Stable	\(\frac{E_{upper} - E_{lower}}{6 \sigma_{short}}\)	How many times wider is the expected range than the observed range, assuming it is stable?
\(C_{pk}\)	Uncentered	1-sided	Stable	\(\frac{\mid E_{limit} - \mu \mid}{3 \sigma_{short}}\)	How many times wider is the expected vs. observed range for the left/right side, assuming it is stable?
\(P_{p}\)	Centered	2-sided	Unstable	\(\frac{E_{upper} - E_{lower}}{6 \sigma_{total}}\)	How many times wider is the expected vs. observed range, stable or not?
\(P_{pk}\)	Uncentered	1-sided	Unstable	\(\frac{\mid E_{limit} - \mu \mid}{3 \sigma_{total}}\)	How many times wider is the expected vs. observed range for the left/right side, stable or not?

Capability Indices (How could it perform, if stable?): \(C_p\), \(C_{pk}\) Process Performance Indices (How is it performing, stable or not?): \(P_p\), \(P_{pk}\)

18.1.3 Index Functions

Let’s do ourselves a favor and write up some simple functions for these.

def cp(sigma_s, upper, lower):
  """Capability index for centered, stable processes"""
  return abs(upper - lower) / (6*sigma_s)

def pp(sigma_t, upper, lower):
  """Performance index for centered, unstable processes"""
  return abs(upper - lower) / (6*sigma_t)

def cpk(mu, sigma_s, lower=None, upper=None):
  """Capability index for uncentered, stable processes"""
  a = None; b = None
  if lower is not None:
    a = abs(mu - lower) / (3*sigma_s)
  if upper is not None:
    b = abs(upper - mu) / (3*sigma_s)
  if (lower is not None) and (upper is not None):
    return min(a,b)
  return a if upper is None else b

def ppk(mu, sigma_t, lower=None, upper=None):
  """Performance index for uncentered, unstable processes"""
  a = None; b = None
  if lower is not None:
    a = abs(mu - lower) / (3*sigma_t)
  if upper is not None:
    b = abs(upper - mu) / (3*sigma_t)
  if (lower is not None) and (upper is not None):
    return min(a,b)
  return a if upper is None else b

18.1.4 Ingredients

Now we need to calculate the key statistics that feed into our capability indices. We’ll calculate both within-subgroup statistics (for capability indices) and total statistics (for performance indices).

stat_s = (water.groupby('time').apply(lambda d: pd.Series({
  'xbar': d['temp'].mean(),
  's': d['temp'].std(),
  'n_w': len(d)
})).reset_index())

stat = pd.DataFrame({
  'xbbar': [stat_s['xbar'].mean()],
  'sigma_s': [(stat_s['s']**2).mean()**0.5],
  'sigma_t': [water['temp'].std()],
  'n': [stat_s['n_w'].sum()],
  'n_w': [stat_s['n_w'].iloc[0]],
  'k': [len(stat_s)]
})
stat

##    xbbar   sigma_s   sigma_t      n   n_w  k
## 0  44.85  1.986174  1.989501  160.0  20.0  8

These statistics give us:

xbbar: The grand mean across all subgroups
sigma_s: The pooled within-subgroup standard deviation (for capability indices)
sigma_t: The total process standard deviation (for performance indices)
n: Total number of observations
n_w: Number of observations per subgroup
k: Number of subgroups

18.1.5 Cp and Pp

Now let’s calculate the capability and performance indices. We’ll use specification limits for “Extra Hot Springs” (42-50°C) as our target range.

limit_lower = 42; limit_upper = 50
estimate_cp = cp(stat['sigma_s'][0], upper=limit_upper, lower=limit_lower)
estimate_pp = pp(stat['sigma_t'][0], upper=limit_upper, lower=limit_lower)
print(f"Cp (capability): {estimate_cp:.3f}")

## Cp (capability): 0.671

print(f"Pp (performance): {estimate_pp:.3f}")

## Pp (performance): 0.670

18.1.6 Cpk and Ppk

Now let’s calculate the uncentered indices that account for process centering:

estimate_cpk = cpk(mu=stat['xbbar'][0], sigma_s=stat['sigma_s'][0], lower=limit_lower, upper=limit_upper)
estimate_ppk = ppk(mu=stat['xbbar'][0], sigma_t=stat['sigma_t'][0], lower=limit_lower, upper=limit_upper)
print(f"Cpk (capability, uncentered): {estimate_cpk:.3f}")

## Cpk (capability, uncentered): 0.478

print(f"Ppk (performance, uncentered): {estimate_ppk:.3f}")

## Ppk (performance, uncentered): 0.478

18.1.7 Equality

There’s an interesting mathematical relationship between these indices:

equality_check = (estimate_pp * estimate_cpk) == (estimate_ppk * estimate_cp)
print(f"Pp × Cpk = Ppk × Cp: {equality_check}")

## Pp × Cpk = Ppk × Cp: True

print(f"Pp × Cpk = {estimate_pp * estimate_cpk:.6f}")

## Pp × Cpk = 0.320554

print(f"Ppk × Cp = {estimate_ppk * estimate_cp:.6f}")

## Ppk × Cp = 0.320554

18.2 Confidence Intervals (Normal Approximation)

Now let’s construct confidence intervals for our capability indices using the normal approximation method. This gives us a range of plausible values for the true population parameters.

18.2.1 Cp Confidence Interval

import math
v_short = stat['k'][0]*(stat['n_w'][0] - 1)
se_cp = estimate_cp * math.sqrt(1 / (2*v_short))
z = 1.959963984540054  # 95% confidence level
ci_cp = (estimate_cp - z*se_cp, estimate_cp + z*se_cp)
print(f"Cp estimate: {estimate_cp:.3f}")

## Cp estimate: 0.671

print(f"Standard error: {se_cp:.3f}")

## Standard error: 0.039

print(f"95% Confidence interval: ({ci_cp[0]:.3f}, {ci_cp[1]:.3f})")

## 95% Confidence interval: (0.596, 0.747)

18.2.2 Cpk Confidence Interval

se_cpk = estimate_cpk * math.sqrt(1 / (2*v_short) + 1 / (9*stat['n'][0]*(estimate_cpk**2)))
ci_cpk = (estimate_cpk - z*se_cpk, estimate_cpk + z*se_cpk)
print(f"Cpk estimate: {estimate_cpk:.3f}")

## Cpk estimate: 0.478

print(f"Standard error: {se_cpk:.3f}")

## Standard error: 0.038

print(f"95% Confidence interval: ({ci_cpk[0]:.3f}, {ci_cpk[1]:.3f})")

## 95% Confidence interval: (0.404, 0.553)

18.2.3 Pp and Ppk Confidence Intervals

v_total = stat['n_w'][0]*stat['k'][0] - 1
se_pp = estimate_pp * math.sqrt(1 / (2*v_total))
ci_pp = (estimate_pp - z*se_pp, estimate_pp + z*se_pp)
print(f"Pp estimate: {estimate_pp:.3f}")

## Pp estimate: 0.670

print(f"Standard error: {se_pp:.3f}")

## Standard error: 0.038

print(f"95% Confidence interval: ({ci_pp[0]:.3f}, {ci_pp[1]:.3f})")

## 95% Confidence interval: (0.597, 0.744)

se_ppk = estimate_ppk * math.sqrt(1 / (2*v_total) + 1 / (9*stat['n'][0]*(estimate_ppk**2)))
ci_ppk = (estimate_ppk - z*se_ppk, estimate_ppk + z*se_ppk)
print(f"\nPpk estimate: {estimate_ppk:.3f}")

##
## Ppk estimate: 0.478

print(f"Standard error: {se_ppk:.3f}")

## Standard error: 0.038

print(f"95% Confidence interval: ({ci_ppk[0]:.3f}, {ci_ppk[1]:.3f})")

## 95% Confidence interval: (0.404, 0.551)

18.2.4 Visualizing Confidence Intervals

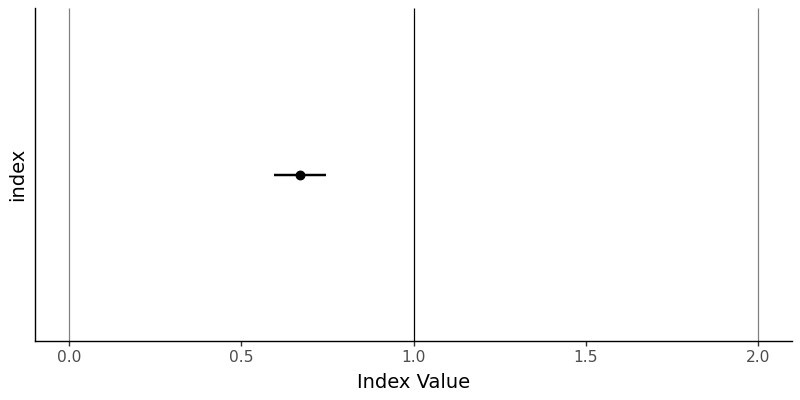

Let’s create a visualization to show our Cp estimate with its confidence interval and important benchmark lines:

# Create a DataFrame for plotting
bands_data = pd.DataFrame({
    'index': ['Cp Index'],
    'estimate': [estimate_cp],
    'lower': [ci_cp[0]],
    'upper': [ci_cp[1]]
})

# Create the plot
g = (ggplot(bands_data, aes(x='index', y='estimate', ymin='lower', ymax='upper')) +
     geom_hline(yintercept=[0, 1, 2], color=['grey', 'black', 'grey']) +
     geom_point(size=3) +
     geom_linerange(size=1) +
     theme_classic(base_size=14) +
     coord_flip() +
     labs(y='Index Value', x=None) +
     theme(axis_text_y=element_blank(), axis_ticks_y=element_blank()))

# Save the plot
g.save('images/06_confidence_interval_plot.png', width=8, height=4, dpi=100)

It’s not the most exciting plot, but it does show very clearly that the value of \(C_{p}\) and its 95% confidence interval are nowhere even close to 1.0, the key threshold. This means we can say with 95% confidence that the true value of \(C_{p}\) is less than 1.

18.3 Bootstrapping Cp (Example)

The normal approximation method assumes certain distributional properties. As an alternative, we can use bootstrapping to estimate confidence intervals by resampling our data. This method is more robust to distributional assumptions.

import numpy as np
reps = 500
def boot_cp(seed=1):
  np.random.seed(seed)
  vals = []
  for r in range(reps):
    sample = water.sample(n=len(water), replace=True)
    stat_s_b = (sample.groupby('time').apply(lambda d: pd.Series({'xbar': d['temp'].mean(), 's': d['temp'].std(), 'n_w': len(d)})).reset_index())
    sigma_s_b = (stat_s_b['s']**2).mean()**0.5
    vals.append(cp(sigma_s_b, upper=limit_upper, lower=limit_lower))
  s = pd.Series(vals)
  return pd.DataFrame({'cp': [estimate_cp], 'lower': [s.quantile(0.025)], 'upper': [s.quantile(0.975)], 'se': [s.std()]})

bootstrap_results = boot_cp()
# Print out the results
boot_cp()

##          cp     lower     upper       se
## 0  0.671307  0.620466  0.785899  0.04336

18.3.1 Bootstrap Sampling Distributions Visualization

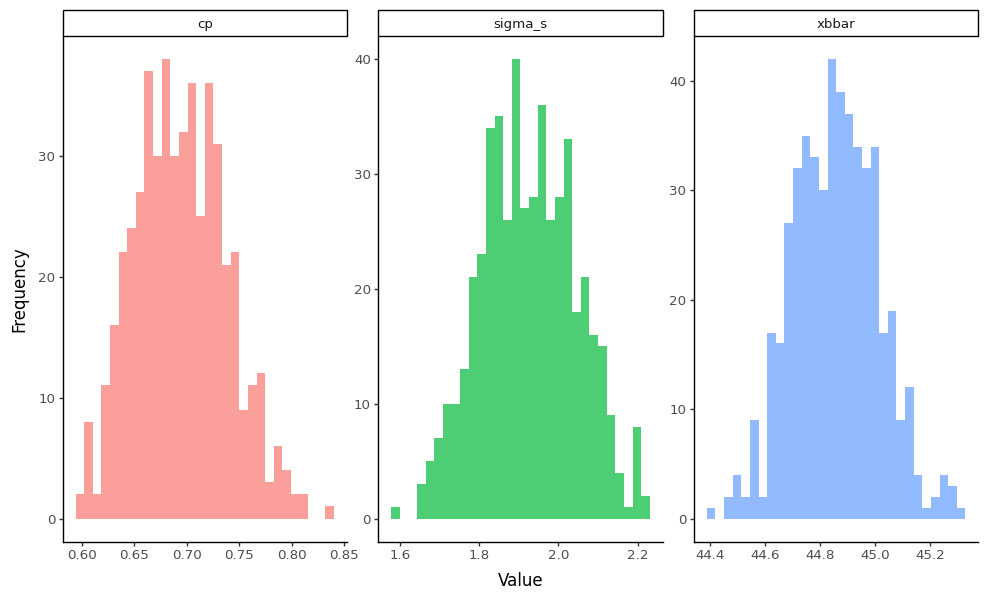

So cool! We’ve now generated the sampling distributions for our bootstrap statistics! Let’s visualize the raw distributions to see those wicked cool bootstrapped sampling distributions:

# Create a more comprehensive bootstrap function that returns all statistics
def boot_comprehensive(seed=1):
    np.random.seed(seed)
    results = []
    for r in range(reps):
        sample = water.sample(n=len(water), replace=True)
        stat_s_b = (sample.groupby('time').apply(lambda d: pd.Series({
            'xbar': d['temp'].mean(),
            's': d['temp'].std(),
            'n_w': len(d)
        })).reset_index())

        xbbar_b = stat_s_b['xbar'].mean()
        sigma_s_b = (stat_s_b['s']**2).mean()**0.5
        cp_b = cp(sigma_s_b, upper=limit_upper, lower=limit_lower)

        results.append({
            'rep': r,
            'xbbar': xbbar_b,
            'sigma_s': sigma_s_b,
            'cp': cp_b
        })

    return pd.DataFrame(results)

# Generate bootstrap data
bootstrap_data = boot_comprehensive()

# Reshape for plotting
plot_data = []
for _, row in bootstrap_data.iterrows():
    plot_data.extend([
        {'type': 'xbbar', 'value': row['xbbar']},
        {'type': 'sigma_s', 'value': row['sigma_s']},
        {'type': 'cp', 'value': row['cp']}
    ])

plot_df = pd.DataFrame(plot_data)

# Create the plot
g = (ggplot(plot_df, aes(x='value', fill='type')) +
     geom_histogram(bins=30, alpha=0.7) +
     facet_wrap('~type', scales='free') +
     theme_classic(base_size=12) +
     labs(x='Value', y='Frequency') +
     theme(legend_position='none'))

# Save the plot
g.save('images/06_bootstrap_distributions.png', width=10, height=6, dpi=100)

18.3.2 Bootstrap Confidence Intervals

Now let’s take our bootstrapped \(C_{p}\) statistics and estimate a confidence interval and standard error for this sampling distribution. Because we have the entire distribution, we can extract values at specific percentiles in the distribution using quantile(), rather than theoretical distributions.

print("Bootstrap Results for Cp:")

## Bootstrap Results for Cp:

print(f"Original estimate: {bootstrap_results['cp'][0]:.3f}")

## Original estimate: 0.671

print(f"Bootstrap 95% CI: ({bootstrap_results['lower'][0]:.3f}, {bootstrap_results['upper'][0]:.3f})")

## Bootstrap 95% CI: (0.620, 0.786)

print(f"Bootstrap standard error: {bootstrap_results['se'][0]:.3f}")

## Bootstrap standard error: 0.043

This suggests a wider confidence interval than our normal distribution assumes by default - interesting!

Conclusion

You’ve successfully computed capability and performance indices (Cp, Cpk, Pp, Ppk) and their confidence intervals using both normal approximation and bootstrap methods in Python. These tools help us assess process capability and performance, providing insights into whether our processes meet specifications and how consistently they perform.

18 Indices and Confidence Intervals for Statistical Process Control in Python
